nRF Thread Topology Monitor Desktop tool

Cross-platform desktop tool that enables developers to visualize Thread mesh network topology in real time

nRF Thread Topology Monitor is a cross-platform tool that enables developers to visualize Thread mesh network topology in real time. The tool is supported on Windows and Linux with separate downloads for each platform. It requires an nRF52833 DK, nRF52840 DK or nRF52840 Dongle.

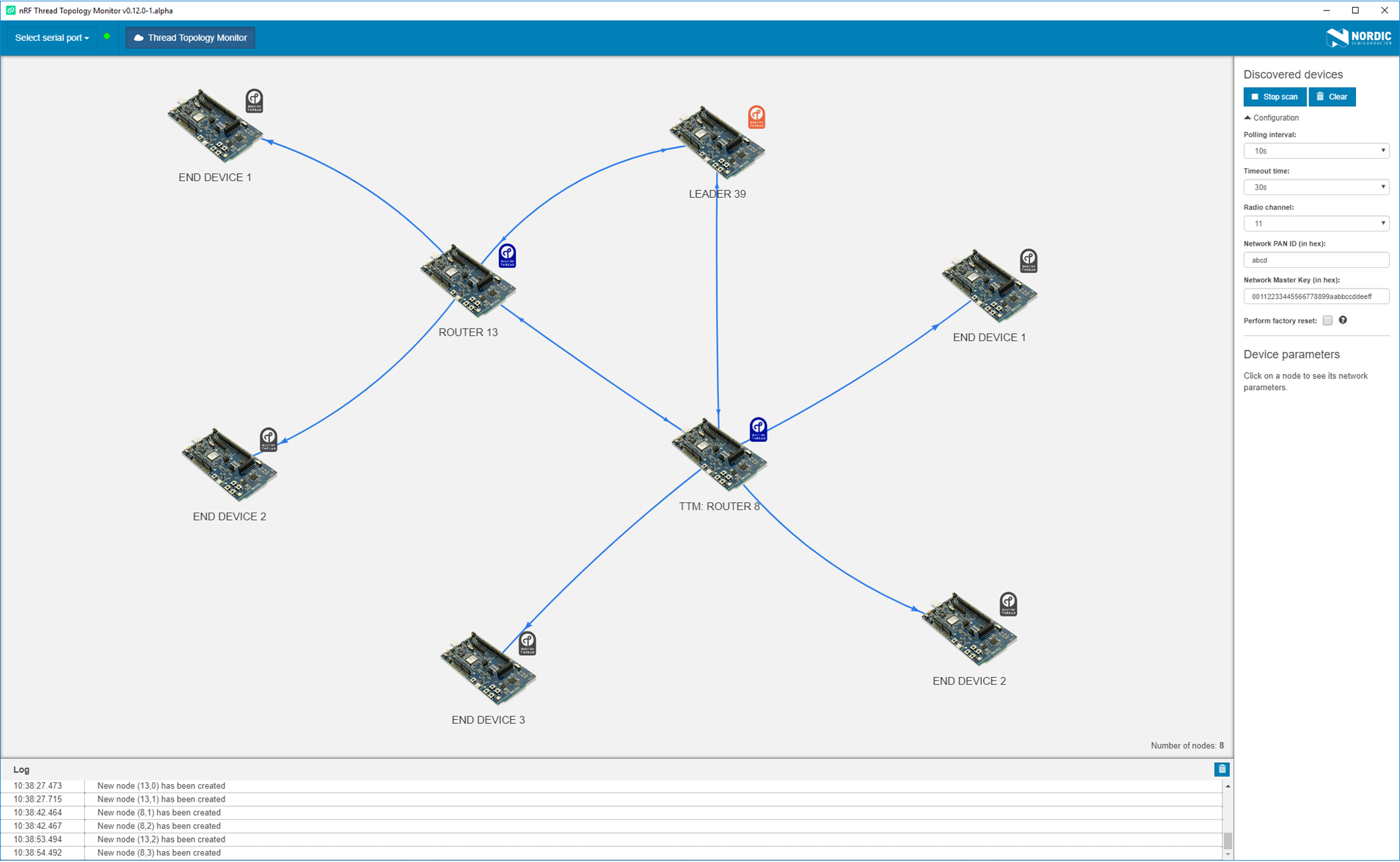

nRF Thread Topology Monitor uses diagnostic mechanisms of the Thread protocol to retrieve information about routing tables of each Thread Router currently attached to the network. The tool also allows to identify a particular device in the network using LEDs by interacting with the Thread BSP solution. You may assign a custom label to a Thread node and store it in persistent memory on the PC side, which helps to track topology changes.

Thread openthread

nRF Thread Topology Monitor

Key features

Windows 32/64

support

Linux

support

Thread

Monitor

Download latest version, nRF Thread Topology Monitor

Click to download latest

Supported development kits

nRF52840 DK

The nRF52840 DK is a Bluetooth LE, Bluetooth mesh, Thread and Zigbee development kit for the nRF52811 and nRF52840 SoCs.

Read more

nRF52840 DK promo

nRF52840 Dongle

The nRF52840 Dongle is complementary hardware to the nRF Connect for Desktop. It supports Bluetooth 5, Bluetooth mesh, Thread and Zigbee.

Read more

nRF52840 Dongle promo

nRF52833 DK

The nRF52833 DK is a Bluetooth LE, Bluetooth mesh, Thread and Zigbee development kit for the nRF52820 and nRF52833 SoCs.

Read more

nRF52833 DK
