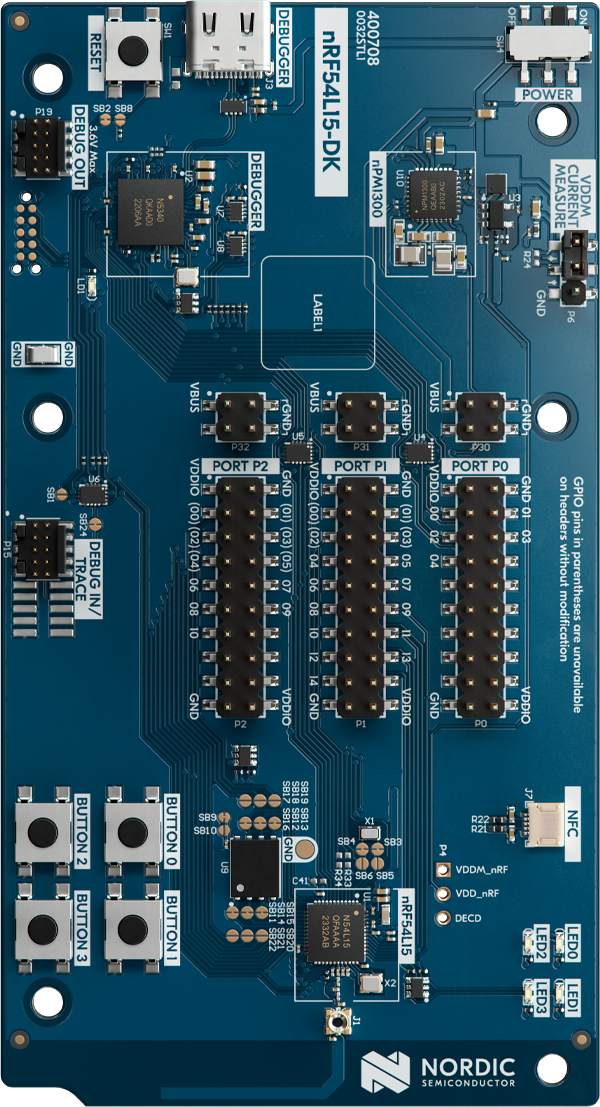

nRF54L15 DK Development kit

Development kit for the nRF54L15, nRF54L10, and nRF54L05 wireless SoCs

The nRF54L15 DK is the development kit for all three wireless SoC (System-on-Chip) options in the nRF54L Series. The nRF54L15 sits on the development board, while the nRF54L10 and nRF54L05 can be emulated. The affordable single-board development kit makes all features of the wireless SoC available to the developer.

The nRF54L15 DK is supported by a comprehensive set of nRF Connect tools and will have support in nRF Connect SDK v2.8.0, available on November 14th, 2024. Developers can explore the full potential of the nRF54L15 using the extensive range of software samples, modules, and libraries available within the nRF Connect SDK.

On November 14th, 2024, nRF Connect SDK Fundamentals and Bluetooth Low Energy Fundamentals in Nordic Developer Academy will support the nRF54L15 DK. These courses have enrolled more than 15,000 developers, have received an average rating of 9.1/10, and provide more than 20 hours of in-depth training.



In stock at DigiKey: Buy now

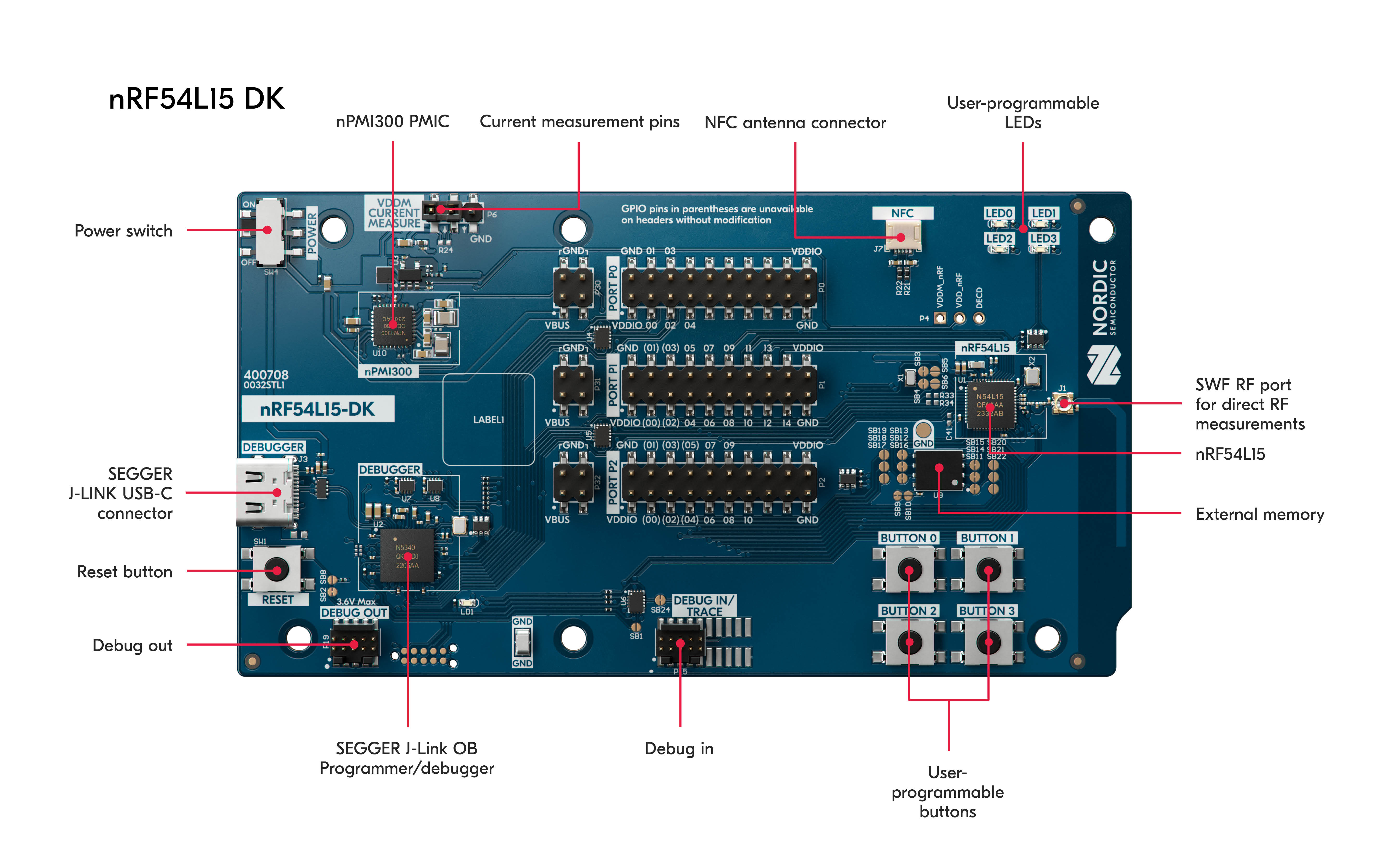

Key features
  • nRF54L15 wireless SoC
  • Emulation of the nRF54L10 and nRF54L05 wireless SoCs
  • 2.4 GHz and NFC antennas
  • SWF RF connector
  • SEGGER J-Link OB programmer/debugger
  • User-programmable LEDs (4) and buttons (4)
  • Pins for measuring power consumption
  • 8 MB external flash memory
  • Two UART interfaces through virtual serial ports
