nPM2100 Power Management IC

Power Management IC (PMIC) with ultra-efficient boost regulator for primary-cell batteries

The nPM2100 PMIC enables longer run-time on every battery by implementing toolbox of power saving capabilities for primary cell batteries.

It features one boost converter that can provide voltages of 1.8 to 3.3 V output, from input voltages of 0.7 to 3.4 V. Examples of supported batteries are one or two AA/AAA/LRxx batteries (in series), or one 3V LiMnO₂ cell. Single- or dual-cell silver oxide and zinc-air coin-cell batteries are also supported, or any other battery that operates within the PMICs input voltage range.

The 150 nA iQ internal boost regulator places itself among the most efficient boost regulators on the market today. A 35 nA ship mode allows the device to be shipped with batteries inserted without draining the battery and eliminates the plastic pull-tab method of protecting batteries during shipping and storage. Hibernate mode includes timed wakeups for applications that spend most of their time in deep sleep, lowering sleep current to 175 nA extending battery lifetimes by up to 3x.

Designed to provide highly efficient power regulation for any primary-cell application, the nPM2100 comes with exceptional software support for Nordic’s nRF52, nRF53, and nRF54 Series of wireless multiprotocol Systems-on-Chip (SoC) in the nRF Connect SDK. The nPM2100 is also suitable for use with non-Nordic host devices.

The nPM2100 features precise algorithm-based fuel gauging. Standard voltage-based estimation is often inaccurate, leading to premature replacements or unexpected depletion. Instead, the nPM2100 uses a voltage and temperature-based fuel gauge on the host microprocessor for more accurate readings, ensuring full battery utilization with minimal additional load.

The nPM2100 comes in a compact 1.9 x 1.9 mm WLCSP and a versatile 4 x 4 mm QFN16 package.

To get the information from this page in a print friendly format, download the nPM2100 product brief.

Download nPM2100 product brief [PDF]

WLCSP1.9x1.9mm

QFN164x4mm

WLCSP1.9x1.9mm
QFN164x4mm

Get samples

Find distributor

Ask us about this

Key features

Ultra-efficient boost regulator, delivering up to 150 mA
50 mA LDO/Load switch supplied by the boost regulator
35 nA Ship Mode with multiple wakeup options
175 nA Hibernate mode with wakeup timer
Fuel gauge for primary cell batteries

Documentation

Downloads

News

A complete energy-saving toolbox for non-rechargeable products

Nordic Semiconductor enables all developers to start designing with the nPM2100 PMIC for non-rechargeable batteries

nPM2100 evaluation kit, software, and documentation are now available to developers.

Since the introduction of the device in January, early customers have started designing it into various primary cell applications, ranging from personal health monitoring to wireless industrial sensors. Now, all developers can take advantage of the innovative PMIC’s capabilities to optimize power efficiency and system performance.

Read the news story

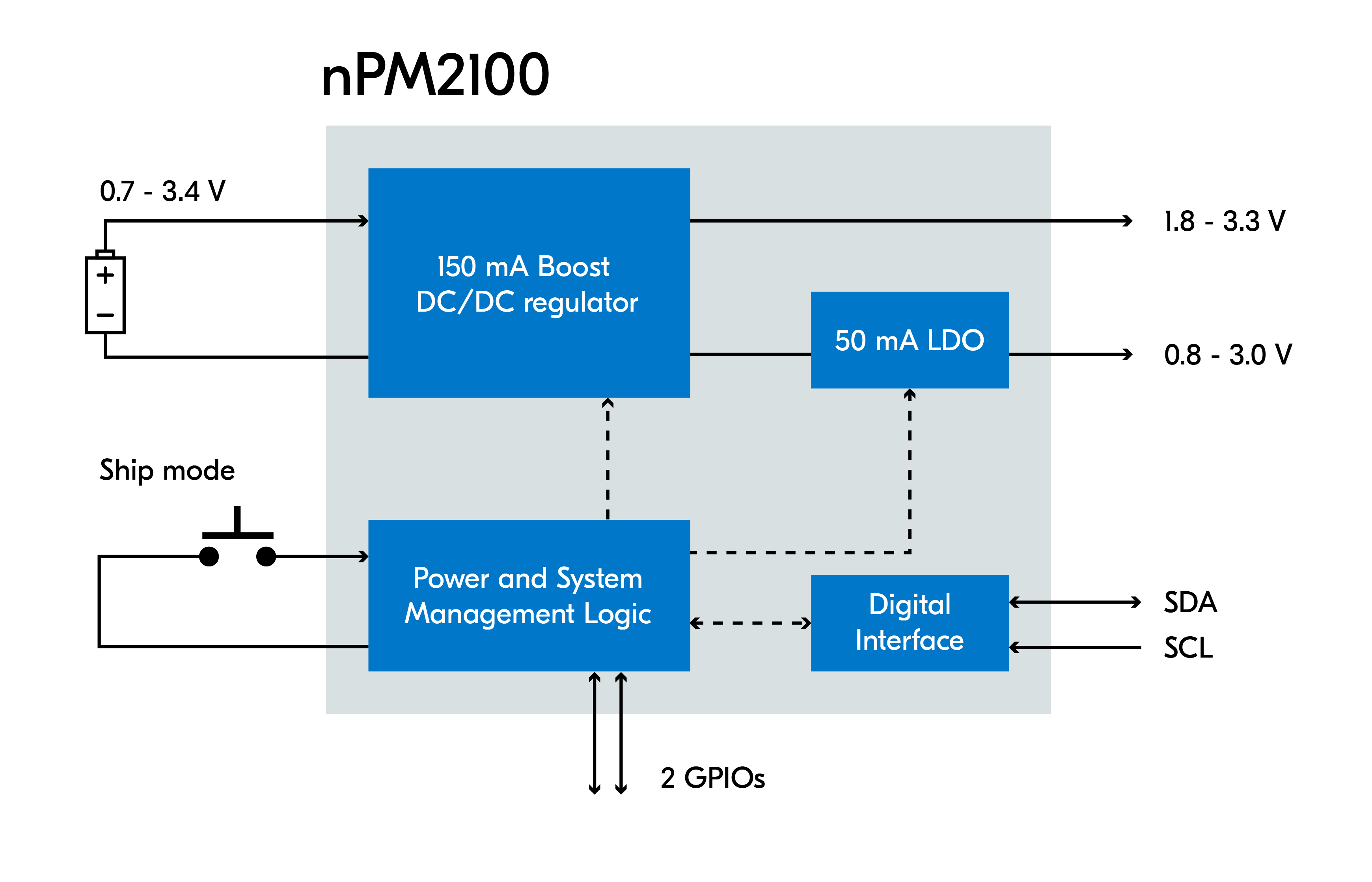

Block diagram
